Frame with Grinder and SFA SANIWALL PRO Up Panels for Wall-Hung Toilets

The SFA SANIWALL PRO Up frame with macerator, reference 0100832, is a complete and versatile solution designed for the installation of wall-hung toilets in homes or commercial premises. This system combines a Grohe frame with a dual-flush cistern, an efficient macerator, and opaque white glass panels that allow the installation to be completely concealed within the wall. Ideal for situations where traditional drainage is not available, the SANIWALL PRO Up is an aesthetic, functional, and easy-to-maintain option.

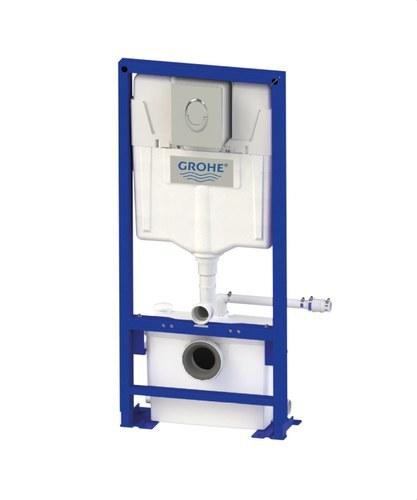

The included Grohe frame in the system is designed to be height-adjustable, providing greater flexibility when adapting the toilet installation to the desired height. The integrated cistern is equipped with a dual-flush system, allowing a choice between 3 or 6 litres of water, ensuring efficient water use and environmentally friendly operation. This not only optimises water consumption but also provides a more sustainable option for modern installations.

The SANIWALL PRO Up is equipped with a powerful 400 W macerator, which handles wastewater from the toilet, basin, shower, and bidet. This macerator features a main inlet for the toilet and two side inlets of 40 mm in diameter, allowing for easy connection of other bathroom fixtures such as the shower, basin, or bidet. The macerating system ensures that solid waste is broken down into small particles, facilitating discharge through small diameter pipes, such as 22/28/32 mm, which simplifies installation in spaces where a traditional drainage system is not feasible.

One of the great advantages of the SANIWALL PRO Up is its automatic operation, ensuring that wastewater evacuation is carried out efficiently every time the toilet, shower, or basin is used. The macerator is capable of lifting water up to 5 metres vertically and 100 metres horizontally, making it an ideal solution for locations where the main drain is far away or on higher levels. This performance ensures that even in challenging situations, wastewater evacuation is done quickly and without issues.

In addition to its functionality, the SANIWALL PRO Up stands out for its aesthetic design. The included opaque white glass panels allow the installation to be completely concealed, providing a modern and clean appearance to the bathroom. These panels not only enhance the aesthetics but also offer easy access to both the cistern and macerator components, greatly simplifying maintenance tasks. On top of the macerator, there are two hatches that allow quick access to the internal components, facilitating inspection or repair tasks without the need to dismantle the entire system.

The operation of the macerator is discreet, with a noise level of only 47 dB(A), ensuring quiet use, an essential feature for residential environments where acoustic comfort is important.

Technical specifications of the SANIWALL PRO Up:

• Number of available inlets: 3
• Inlet diameter: 100 mm (toilet), 40 mm (shower, basin, bidet)
• Recommended discharge diameter: 22/28/32 mm
• Motor consumption: 400 W
• Power supply voltage: 220-240 V
• Electrical class: I
• Protection rating: IP44
• Noise level: 47 dB(A)
• Maximum horizontal discharge: 100 metres
• Maximum vertical discharge: 5 metres
• Shower tray height: 13 cm
• Weight: 17.5 kg

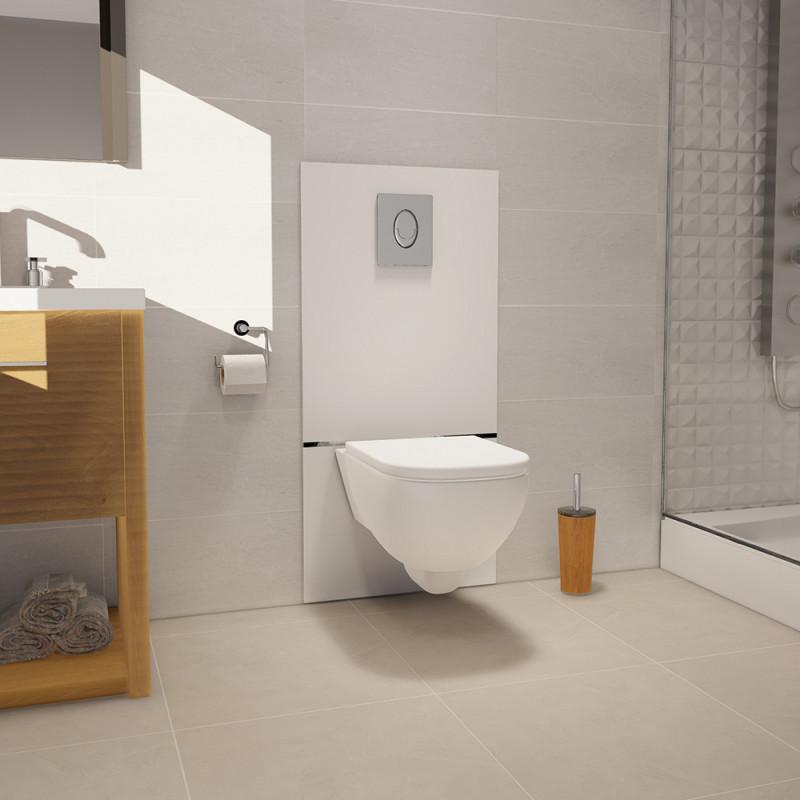

The SANIWALL PRO Up is designed to be installed within the wall, allowing for a minimalist and modern bathroom appearance, without visible drainage system components. Furthermore, its versatility and ability to connect multiple sanitary fixtures make it an excellent choice for complete bathrooms, where an efficient and aesthetic solution for wastewater evacuation is sought.
