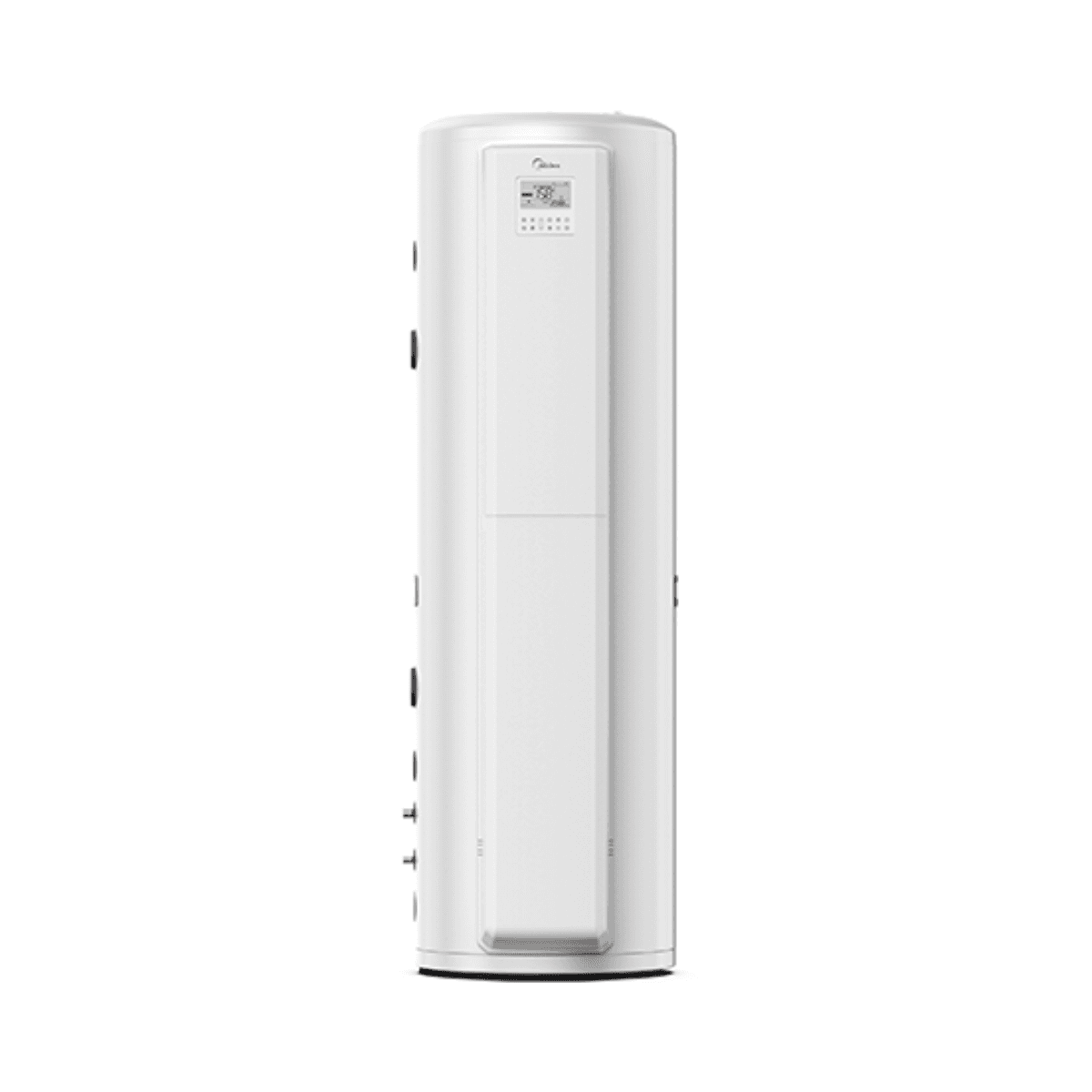

Midea CIRQ HP 190-Liter Multifunction Domestic Hot Water Storage Tank

The Midea CirQ HP 190-liter multifunctional DHW tank is part of the CirQ HP system, an advanced solution that integrates climate control and domestic hot water production in a single unit. This tank is specifically designed to work alongside direct expansion Split units, allowing heat recovery to maximize system efficiency.

Simultaneous Cooling and DHW Production

Thanks to heat recovery technology, the CirQ HP system enables the simultaneous generation of domestic hot water and cooling. While the system cools the space in cooling mode, the residual heat is reused to heat the tank water, reducing energy consumption and improving the overall performance of the installation.

Customizable System for Any Project

This tank allows you to select the type of direct expansion indoor unit that best suits the needs of each installation, offering great flexibility for both residential projects and light commercial applications.

Integrated WiFi Connectivity

The unit comes with built-in WiFi connectivity, allowing control and monitoring through the Midea SmartHome app, making remote system management easy and enhancing the user experience.

Domestic Hot Water Performance

Under average climate conditions, the tank offers an excellent balance between efficiency and comfort, providing a high volume of hot water and optimized heating times.

• Tank capacity: 190 liters
• SCOP DHW (average climate): 2.62
• DHW load profile: L
• Reference hot water temperature: 54 °C
• Hot water volume at 40 °C: 240 liters
• Heating time: 2 h 11 min

Backup Electric Heater

The tank includes a backup electric heater that ensures DHW production during peak demand or as a support system, always guaranteeing user comfort.

• Backup electric heater power: 2.0 kW

Technical Connection Data

• Liquid pipe diameter: 1/4”
• Gas pipe diameter: 3/8”
• Communication wiring: (3+T) x 2.5 mm²
• Standby consumption in DHW (average climate): 50 W

Dimensions and Weight

PLSX-190(30)/DN8-A Tank
Width 504 mm · Height 1,660 mm · Depth 574 mm · Weight 70 kg

Recommended Applications

This tank is ideal for installations requiring a compact and efficient climate control and DHW solution, such as single-family homes, high-comfort apartments, or projects seeking to maximize energy efficiency through heat recovery.
