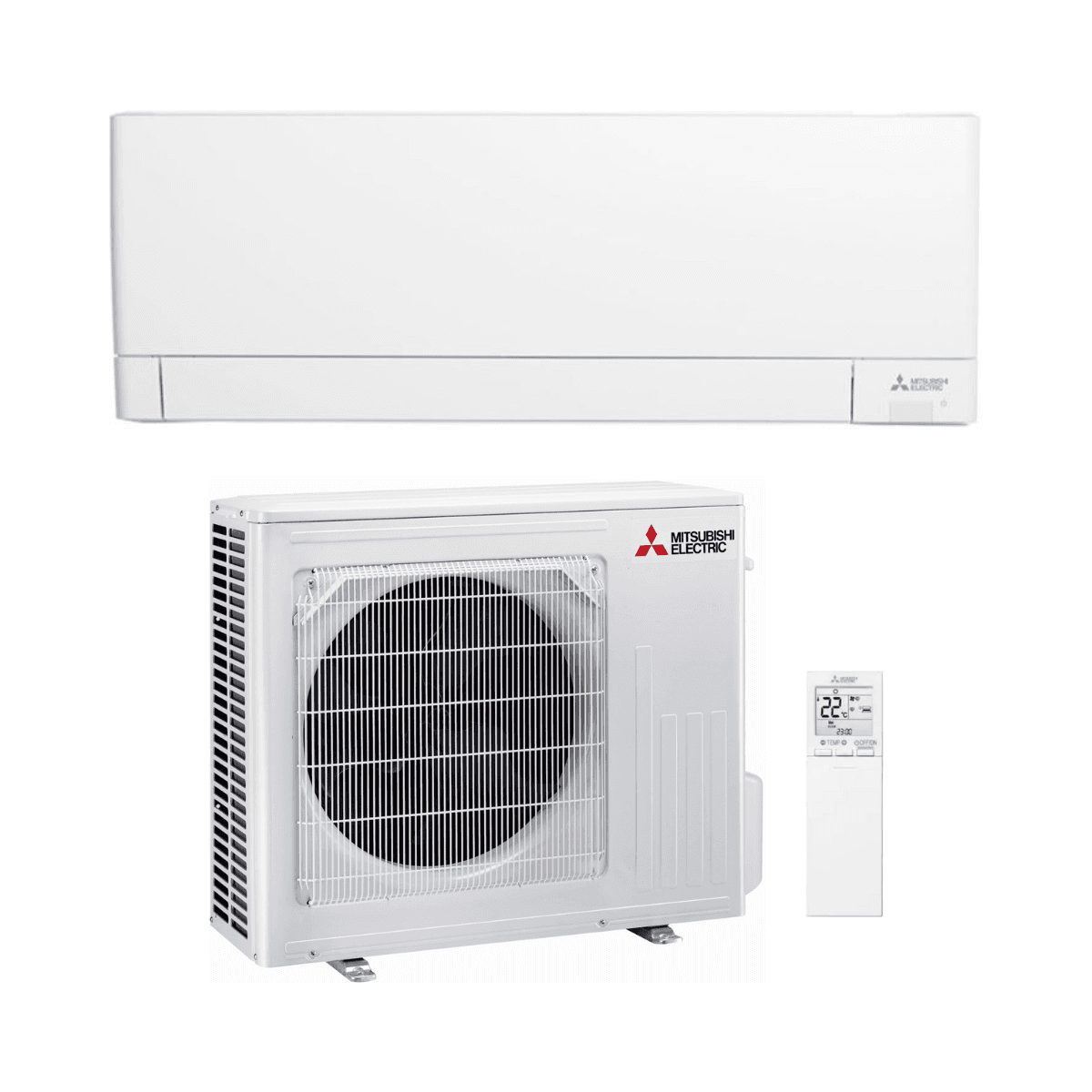

Mitsubishi MSZ-AY50VGK 5.0 kW 18000 BTU Air Conditioner with WiFi

The Mitsubishi Electric MSZ-AY50VGK is a high-performance wall-mounted split system designed to efficiently climate large rooms, offering the perfect balance between power, efficiency, and low noise levels. The set includes the MSZ-AY50VGKP/U indoor unit and the MUZ-AY50VG outdoor unit, providing a reliable solution for both cooling and heating in residential use.

Application and Thermal Comfort

With a nominal power of 5.0 kW (18,000 BTU), this unit is ideal for areas of approximately 25 to 35 m², depending on insulation, home orientation, ceiling height, and internal thermal loads. The precise modulation of the inverter compressor maintains a stable temperature, enhancing comfort and reducing unnecessary energy consumption.

The indoor unit delivers a uniform and pleasant airflow with ultra-quiet operation, making it suitable for large living rooms or spaces where acoustic comfort is essential.

Smart Control and Connectivity

This model features integrated WiFi, allowing remote control from your smartphone or tablet via the compatible Mitsubishi Electric app. Users can adjust temperatures, operating modes, and scheduling from anywhere, making it easy to efficiently manage comfort and energy consumption.

Performance and Efficiency

The Mitsubishi Electric MSZ-AY50VGK offers a cooling capacity of 1.5 / 5.0 / 5.4 kW (minimum, nominal, and maximum) and a heating capacity of 1.6 / 5.4 / 6.6 kW. It boasts high seasonal efficiency, with SEER 7.90 and SCOP 4.60 in a moderate climate, as well as a nominal EER of 3.50 and a nominal COP of 4.10. It uses R-32 refrigerant, which increases efficiency and reduces environmental impact.

Main Features

• Wall-mounted inverter split system for large spaces.
• Integrated WiFi for remote control and scheduling via app.
• Quiet operation with precise power modulation.
• Uniform air distribution for enhanced comfort.
• High reliability and durability, guaranteed by Mitsubishi Electric.

Dimensions and Weight

• MSZ-AY50VGKP/U indoor unit: 299 × 798 × 245 mm (height × width × depth) · approximate weight 10.5 kg.
• MUZ-AY50VG outdoor unit: 550 × 800 × 285 mm (height × width × depth) · approximate weight 35 kg.
• Total set weight: approximately 45.5 kg.

Connections and Installation Data

• Liquid refrigerant connection: Ø 6.35 mm (1/4").
• Gas refrigerant connection: Ø 12.7 mm (1/2").
• Indoor unit drainage connection: outlet for condensate removal via flexible hose.
• Power supply: from the outdoor unit, with electrical interconnection between units as per the manufacturer's manual.

The Mitsubishi Electric MSZ-AY50VGK is an ideal solution for homes that require higher power without sacrificing low noise, smart control, and high efficiency. For optimal performance and system durability, professional installation and proper verification of mounting conditions and thermal load are recommended.
