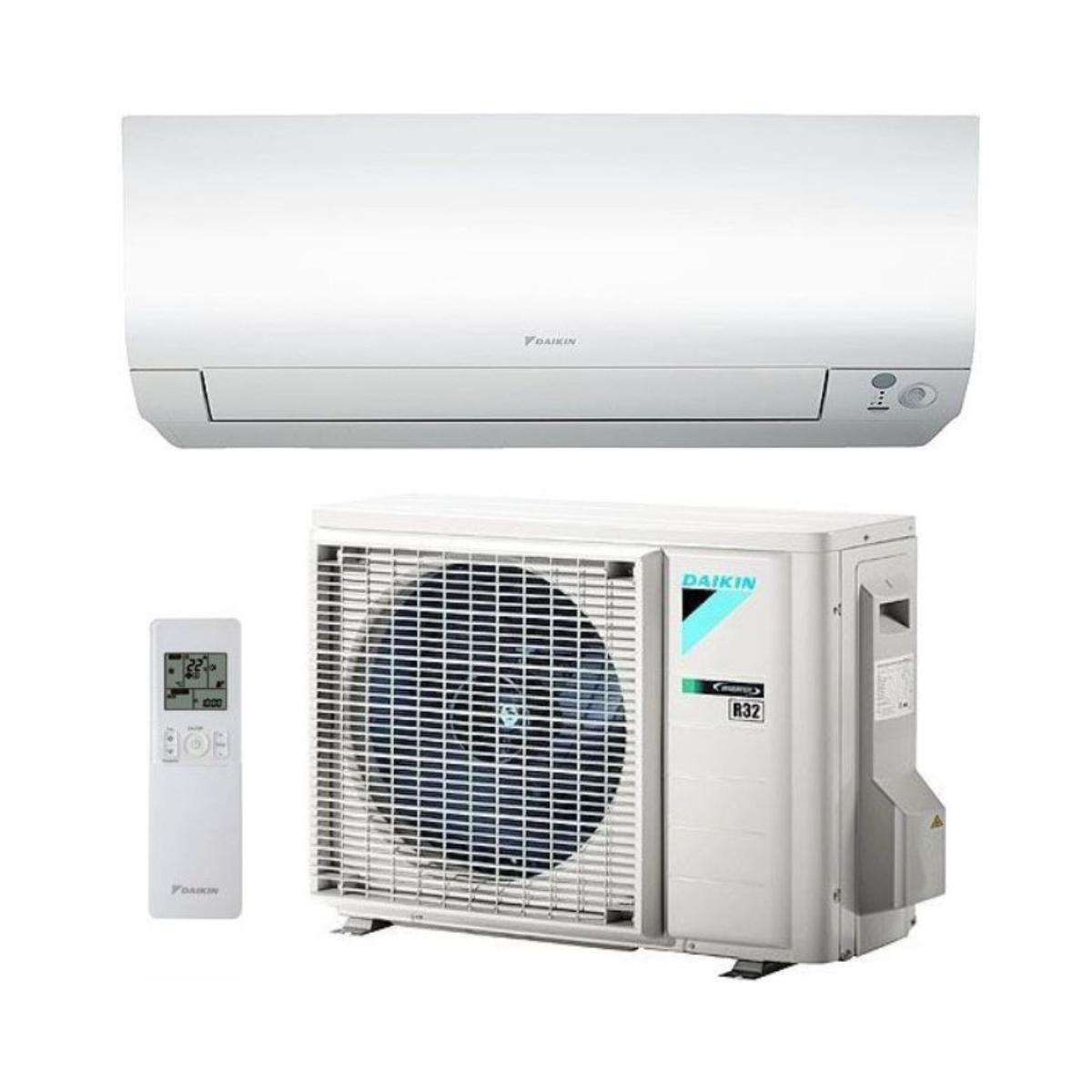

Daikin Perfera TXM35A Air Conditioner with WiFi 3.5 kW 12000 BTU

The Daikin Perfera TXM35A is a high-end climate control unit designed to offer an optimal balance between comfort, energy efficiency, and indoor air quality. This set consists of the FTXM35A wall-mounted indoor unit and the RXM35A9 outdoor unit, configured to provide stable and reliable performance for both cooling and heating throughout the year.

Application and Comfort Level

With a nominal power of 3.5 kW (12,000 BTU), this model is ideal for air conditioning spaces of approximately 15 to 25 m², depending on insulation, room orientation, and existing thermal loads. The Comfort+ system combined with 3D airflow ensures even air distribution, avoiding direct drafts and improving thermal comfort throughout the room.

It features a presence sensor capable of detecting occupancy and automatically adjusting the unit’s operation to enhance comfort and optimize energy consumption. The Perfera range also stands out for its advanced air filtration and purification systems, designed to reduce fine particles, allergens, and odors, contributing to a healthier indoor environment.

Smart Control and Connectivity

The Daikin Perfera TXM35A includes integrated WiFi as standard, allowing remote control of the unit from a smartphone or tablet via the compatible Daikin app. This makes it easy to manage temperatures, schedule operation times, and control the system even when you’re not at home.

Performance and Energy Efficiency

The unit offers a cooling capacity of 1.4 / 3.5 / 4.0 kW (minimum, nominal, and maximum) and a heating capacity of 1.4 / 4.0 / 5.0 kW. It boasts high seasonal efficiency, with SEER 8.65 and SCOP 5.10 in a temperate climate, as well as a nominal EER of 4.00 and a nominal COP of 4.65. It uses R-32 refrigerant, which enhances system efficiency and reduces environmental impact.

Key Features

• Ultra-quiet operation, with the indoor unit starting from 19 dB(A).
• 3D airflow for uniform climate control.
• Motion sensor for automatic comfort adjustment.
• Integrated WiFi for remote control and advanced scheduling.
• High-performance air filtration and purification systems.

Dimensions and Weight

• FTXM35A indoor unit: 298 × 804 × 252 mm (height × width × depth) · approximate weight 11.5 kg.
• RXM35A9 outdoor unit: 734 × 870 × 373 mm (height × width × depth) · approximate weight 49 kg.
• Total set weight: approximately 60 kg.

Connections and Installation Data

• Liquid refrigerant connection: Ø 6.4 mm (1/4").
• Gas refrigerant connection: Ø 9.5 mm (3/8").
• Indoor unit drain connection: hose with 16 mm outer diameter.
• Power supply from the outdoor unit, with electrical interconnection between units according to regulations and manufacturer specifications.

The Daikin Perfera TXM35A is an ideal solution for homes seeking a high level of comfort, low noise, and intelligent indoor climate control. For maximum performance and system durability, professional installation and proper verification of mounting conditions and thermal load are recommended.
