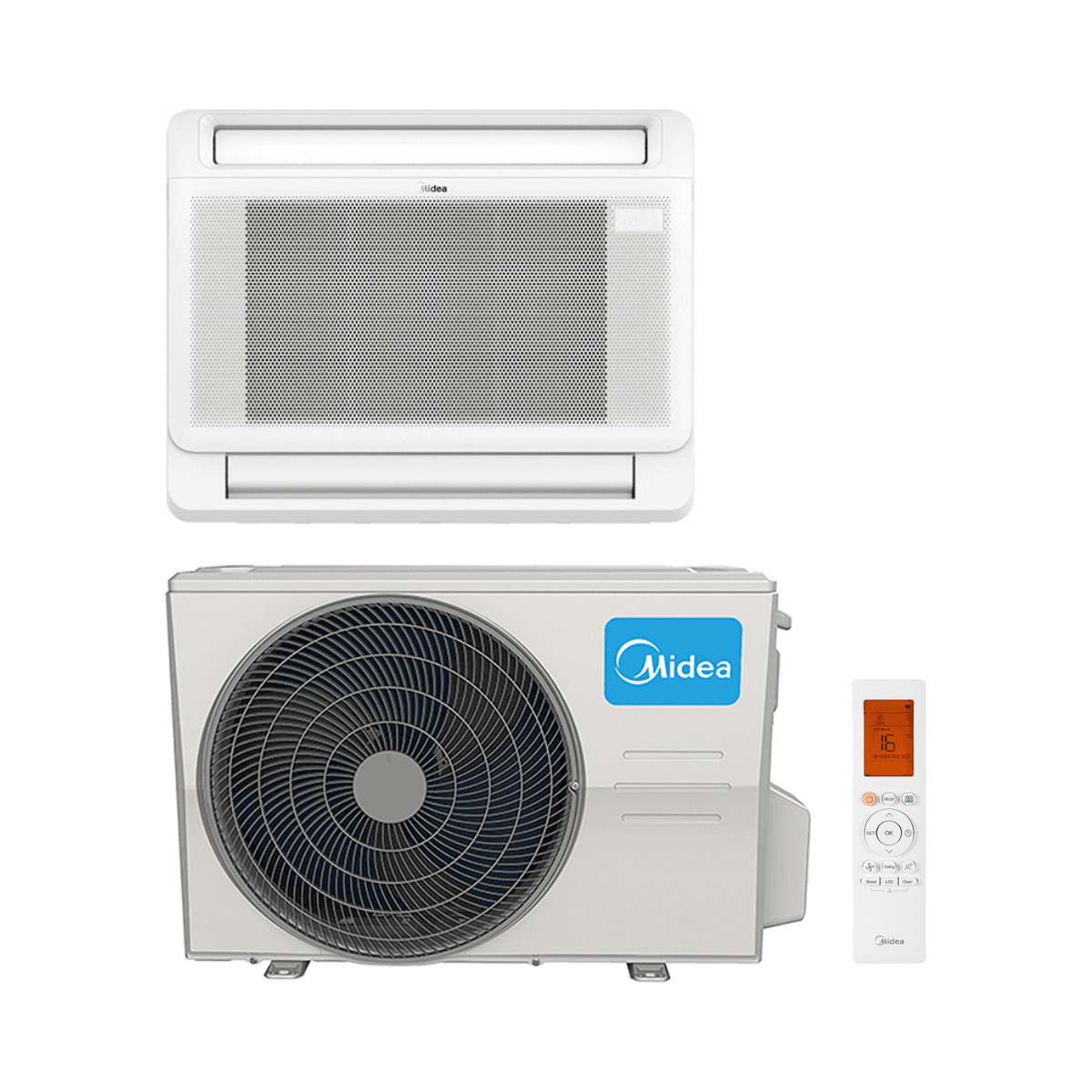

Midea Dual-Flow Console Air Conditioner 3.5 kW 12000 BTU

The Midea dual-flow console is designed to provide uniform and comfortable climate control thanks to its dual air outlet, which distributes air both from the top and bottom of the unit. This configuration is especially effective for heating, enhancing thermal comfort from floor level.

Modern Design and Compact Format

The unit has been completely redesigned to offer a more elegant and contemporary look, with a slimmer profile than its previous version. Its console-type format allows for flexible installation, ideal for low-height placement, under windows, or as a replacement for radiators, making the most of available space.

High Performance and Energy Efficiency

This model offers a cooling capacity of 3.52 kW and a heating capacity of 4.69 kW, with an energy rating of A++ for cooling and A+ for heating, ensuring efficient operation and optimized consumption throughout the year.

• Cooling capacity: 3.52 kW
• Power consumption (cooling): 1,000 W
• Heating capacity: 4.69 kW
• Power consumption (heating): 980 W
• Energy rating: A++ cooling / A+ heating

Quiet Operation

The Midea console stands out for its low noise level, offering discreet operation even at maximum power, making it suitable for bedrooms, living rooms, or work areas.

• Indoor air flow: 490 / 580 / 650 m³/h
• Indoor sound pressure: 27 / 34 / 37 dB(A)
• Outdoor air flow: 2,200 m³/h
• Outdoor sound pressure: 54 dB(A)

Smart Control and Connectivity

Enjoy full control of the unit via the Midea Air app, available for Android and Apple devices, making it easy to manage your climate from anywhere. It is also compatible with voice control through Alexa and Google Home.

Enhanced Durability with Golden Fin™

Features Golden Fin™ coating on the heat exchanger, protecting the unit against salty environments, rain, and corrosive agents, increasing its durability and maintaining optimal performance over time.

Technical Installation Data

• Power supply: 220-240 V / 1 phase / 50 Hz
• Maximum current: 9 A
• Refrigerant pipes: Ø 1/4” liquid / Ø 3/8” gas
• Factory refrigerant charge: 0.72 kg
• Additional charge: 0.012 kg/m
• Maximum pipe length: 25 m
• Maximum height difference: 10 m
• Drain outlet pipe: Ø 16 mm

Dimensions and Weight

Indoor unit MFAU-12NX-2
Width 794 mm · Height 621 mm · Depth 200 mm · Weight 14.90 kg

Outdoor unit MO-12N8-Q
Width 765 mm · Height 555 mm · Depth 303 mm · Weight 26.60 kg

Set Composition

• Indoor unit MFAU-12NX-2
• Outdoor unit MO-12N8-Q
• Remote control RG10N3(2HS)/BGEF
