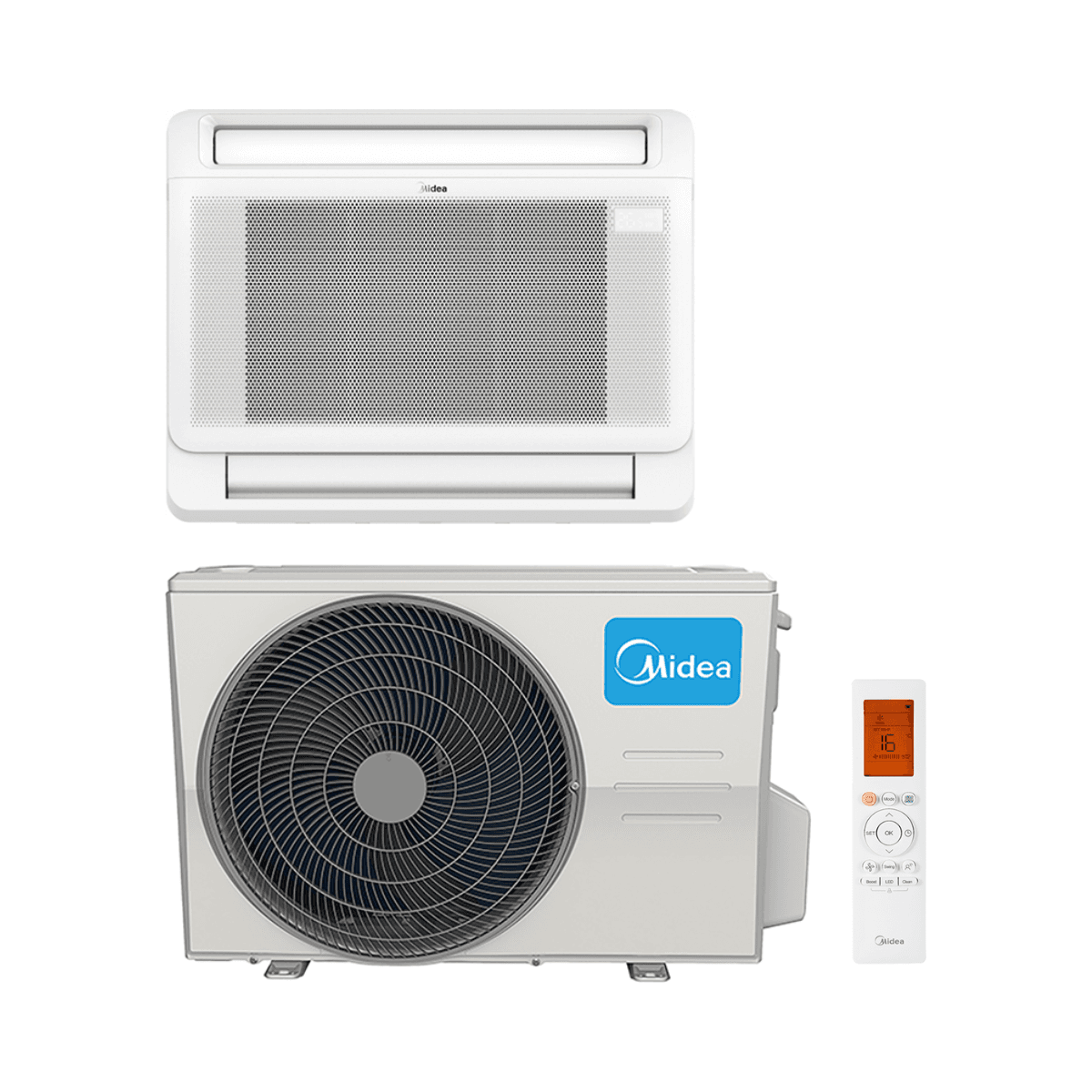

Midea Double Flow Console Air Conditioner 2.6 kW 9000 BTU

The Midea dual-flow console is designed to deliver superior thermal comfort thanks to its dual air outlet option, allowing air distribution from both the top and bottom of the unit. This feature enhances temperature uniformity throughout the room, especially in heating mode.

Compact and Adaptable Design

With a modern and elegant design, this unit has been completely redesigned compared to previous versions, reducing its thickness and optimizing space usage. Its console-type format makes it ideal for low-height installations, under windows, or as a replacement for radiators.

High Performance and Energy Efficiency

The unit offers a cooling capacity of 2.60 kW and a heating capacity of 3.51 kW, with an energy rating of A++ for cooling and A+ for heating, ensuring optimized consumption throughout the year.

• Cooling capacity: 2.60 kW
• Power consumption (cooling): 800 W
• Heating capacity: 3.51 kW
• Power consumption (heating): 1,000 W
• Energy rating: A++ cooling / A+ heating

Quiet Operation and Acoustic Comfort

The indoor unit operates at low noise levels, starting from just 27 dB(A), making it suitable for bedrooms, offices, or relaxation areas.

• Indoor air flow: 490 / 580 / 650 m³/h
• Indoor sound pressure: 27 / 34 / 37 dB(A)
• Outdoor sound pressure: 54 dB(A)

Smart Control and Connectivity

Allows remote control via the Midea Air app, available for Android and Apple, making it easy to manage the unit from anywhere. It is also compatible with voice control through Alexa and Google Home.

Maximum Durability with Golden Fin™

Features Golden Fin™ coating on the heat exchanger, which protects against salty environments, rain, and corrosive agents, increasing the unit's lifespan and maintaining its performance over time.

Technical Installation Data

• Power supply: 220-240 V / 1 phase / 50 Hz
• Maximum current: 9 A
• Refrigerant pipes: Ø 1/4” liquid / Ø 3/8” gas
• Factory refrigerant charge: 0.72 kg
• Additional charge: 0.012 kg/m
• Maximum pipe length: 25 m
• Maximum height difference: 10 m
• Drain outlet: Ø 16 mm

Dimensions and Weight

Indoor unit MFAU-09NX-2
Width 794 mm · Height 621 mm · Depth 200 mm · Weight 14.90 kg

Outdoor unit MO-09N8-Q
Width 765 mm · Height 555 mm · Depth 303 mm · Weight 24.60 kg

Set Composition

• Indoor unit MFAU-09NX-2
• Outdoor unit MO-09N8-Q
• Remote control RG10N3(2HS)/BGEF
