Mitsubishi Electric Ducted Air Conditioner MSEZ-50VA 5 kW 17000 BTU

The Mitsubishi Electric MSEZ-50VA ducted air conditioner provides uniform, quiet, and highly efficient climate control.

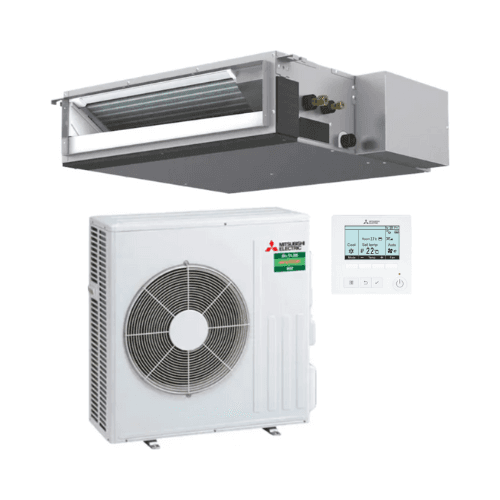

The set includes the indoor unit SEZ-M50DA2, the outdoor unit SUZ-M50VA, and the wall-mounted controller PAR-40MAA.
Thanks to its reduced height and inverter operation, it is the perfect solution for residential or commercial projects where technical space is limited.

Technical Specifications

• Cooling capacity: 5.0 kW (17,000 BTU)
• Heating capacity: 6.0 kW
• SEER: 6.6
• SCOP: 4.2
• EER: 3.33
• COP: 4.10
• Refrigerant: R32
• Airflow: up to 840 m³/h
• Indoor unit noise level: 24–34 dB(A)
• Refrigerant connections: 1/4” (Ø6.35 mm) – 1/2” (Ø12.7 mm)
• Power supply: single-phase 230 V / 50 Hz

Set Composition

• 1 × Indoor unit SEZ-M50DA2
• 1 × Outdoor unit SUZ-M50VA
• 1 × Wall controller PAR-40MAA

Installation and Maintenance

The unit is supplied without additional installation materials.
With just 200 mm in height, the SEZ-M50DA2 indoor unit allows for easy installation in false ceilings and tight spaces.
It features adjustable static pressure and front access to filters for easy cleaning and regular maintenance.

Dimensions and Weight

• Indoor unit (SEZ-M50DA2): 200 × 1100 × 700 mm – 22 kg
• Outdoor unit (SUZ-M50VA): 880 × 840 × 330 mm – 51 kg

Recommended Applications

Ideal for homes, offices, or small commercial spaces between 40 and 60 m² where a quiet, compact, and efficient ducted system with advanced wall control is required.
