Mitsubishi Electric MSEZ-25VA Ducted Air Conditioner 2.5 kW 9000 BTU

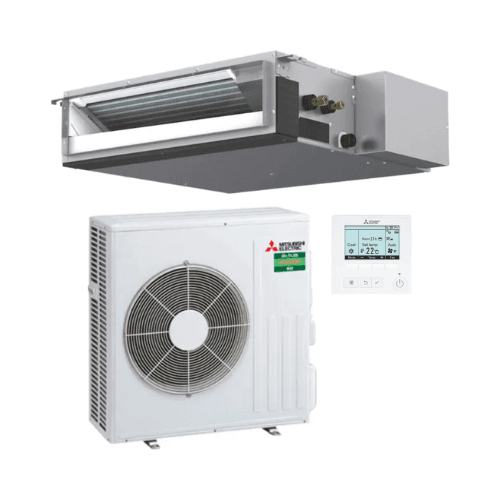

The Mitsubishi Electric MSEZ-25VA ducted air conditioner is the most compact and quiet option in the SEZ range, ideal for efficiently and comfortably cooling small rooms. The set includes the indoor unit SEZ-M25DA2, the outdoor unit SUZ-M25VA, and the wall-mounted control panel PAR-40MAA. Its ultra-slim design and inverter technology allow for flexible installation in false ceilings, maintaining stable operation and low energy consumption.

Technical Specifications

• Cooling capacity: 2.5 kW (9000 BTU)
• Heating capacity: 3.2 kW
• SEER: 6.6
• SCOP: 4.2
• EER: 3.33
• COP: 4.10
• Refrigerant: R32
• Airflow: up to 480 m³/h
• Indoor unit noise level: 22–32 dB(A)
• Refrigerant connections: 1/4” (Ø6.35 mm) – 3/8” (Ø9.52 mm)
• Power supply: single-phase 230 V / 50 Hz

Set Composition

• 1 × Indoor unit SEZ-M25DA2
• 1 × Outdoor unit SUZ-M25VA
• 1 × Control panel PAR-40MAA

Installation and Maintenance

The system is supplied without additional installation materials. Its total height of 200 mm allows the indoor unit SEZ-M25DA2 to be installed in shallow false ceilings. It offers adjustable static pressure and front access to filters and components, making maintenance and regular cleaning easy.

Dimensions and Weight

• Indoor unit (SEZ-M25DA2): 200 × 900 × 700 mm – 20 kg
• Outdoor unit (SUZ-M25VA): 550 × 800 × 285 mm – 34 kg

Recommended Applications

Ideal for bedrooms, offices, or small rooms up to 25 m² where a compact, quiet, and energy-efficient ducted system is required, featuring advanced wall control and a discreet design.
