Mitsubishi ECODAN ECO Inverter 8 kW 200 Liter Aerothermal Set

The Mitsubishi Electric ECODAN ECO Inverter 8 kW Aerothermal System offers a comprehensive solution for heating, cooling, and domestic hot water (DHW) production. It consists of the indoor module ERST20C-VM2DR1 with a 200-liter storage tank and the outdoor unit SUZ-SWM80VA2, which uses high-efficiency inverter technology to optimize energy consumption and ensure stable performance even at low outdoor temperatures.

Technical Specifications

• Nominal heating capacity: 8.0 kW
• Type of heat pump: air-to-water, single-phase
• Refrigerant: R32
• Flow temperature range: up to 60 °C
• SEER: 4.83
• SCOP: 4.52
• COP: 4.40
• DHW tank: 200-liter integrated
• Connectivity: remote control and Smart Grid management capability
• Power supply: single-phase 230 V / 50 Hz
• Outdoor unit sound level: 52 dB(A)
• Hydraulic connections: 1” G male thread

Set Composition

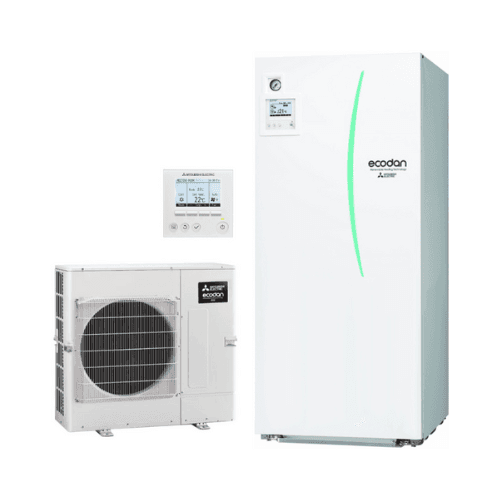

• 1 × Indoor unit ERST20C-VM2DR1 (Hydrobox with 200 L storage tank)
• 1 × Outdoor unit SUZ-SWM80VA2 (8 kW air-to-water heat pump)

Installation and Maintenance

The system is delivered as a pre-configured set for direct hydraulic installation, with no additional materials included. Its compact design makes it easy to integrate into technical rooms or single-family homes. It features a three-way valve, modulating pump, and integrated electric backup heater, as well as advanced controls for zone management, scheduling, and DHW production.

Dimensions and Weight

• Indoor unit (ERST20C-VM2DR1): 1600 × 595 × 680 mm – 100 kg
• Outdoor unit (SUZ-SWM80VA2): 714 × 800 × 285 mm – 55 kg

Recommended Applications

Suitable for single-family homes, renovations, or new constructions requiring underfloor heating, low-temperature radiators, and DHW production with high seasonal efficiency and low noise levels.
