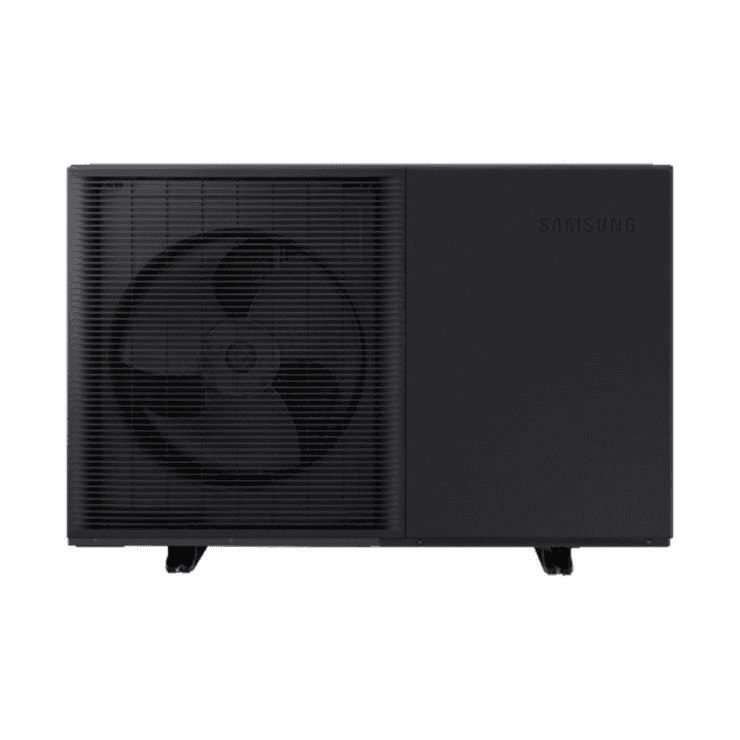

Samsung EHS R290 8.0 kW Monobloc Air Source Heat Pump - Three Phase

The Samsung EHS R290 8.0 kW is a monobloc air source heat pump designed to meet the heating, cooling, and domestic hot water needs of single-family homes and efficient residential projects. The use of natural refrigerant R290 combines high energy performance with a very low environmental impact, complying with the latest regulatory requirements.

System Type and Application

As a monobloc system, the entire refrigeration circuit is integrated into the outdoor unit, simplifying installation and eliminating the need to handle refrigerant on-site. The connection to the interior is made via a hydraulic circuit, making it easy to integrate into both new installations and renovations. With a nominal output of 8.0 kW, this heat pump is suitable for medium-sized homes, depending on insulation, emission system, and thermal load calculations.

R290 Refrigerant and Efficiency

R290 (propane) stands out for its excellent thermodynamic properties and low global warming potential. As a result, the unit can achieve high supply temperatures with good efficiency, making it especially suitable for installations with existing radiators, underfloor heating, or mixed systems.

Performance and Operation

• Nominal thermal output: 8.0 kW.
• Operates in heating, cooling, and DHW production modes.
• Inverter compressor for precise power modulation.
• High seasonal efficiency optimized for European climates.
• Reliable operation even at low outdoor temperatures.

Electrical Supply

This version features a three-phase power supply, providing greater electrical stability and balanced load distribution, especially beneficial for installations with constant thermal demand.

• Voltage: 400 V.
• Phases: 3F + N + T.
• Frequency: 50 Hz.

Hydraulic Connections

• Supply and return connections with standard hydraulic threading.
• Ready to work with buffer tanks and DHW accumulators.
• Compatible with low and medium temperature systems.
• Integration with Samsung EHS range controls and accessories.

Dimensions and Weight

• Outdoor unit dimensions (H × W × D): approximately 1,278 × 1,018 × 530 mm.
• Weight: around 145 kg.

Key Features

• Compact monobloc air source heat pump for outdoor installation.
• High-efficiency, low environmental impact natural R290 refrigerant.
• High supply temperature, suitable for existing radiators.
• Robust, weather-resistant design.
• High reliability and compatibility with the Samsung EHS ecosystem.

Installation Notes

• Installation recommended by a professional specialized in air source heat pumps.
• Frost protection in the hydraulic circuit is essential.
• The indicated power is nominal and should be validated by thermal load calculation.
• Check compatibility with controls, accumulators, and emission system.

The Samsung EHS R290 8.0 kW three-phase is an efficient and sustainable air source heat pump solution for residential projects seeking to reduce energy consumption and emissions without sacrificing a high level of comfort all year round.
