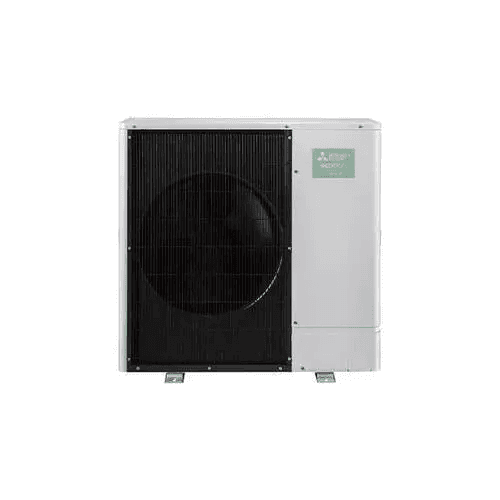

Mitsubishi ECODAN PUZ-WZ R290 9 kW Monobloc Air Source Heat Pump

The Mitsubishi Electric ECODAN PUZ-WZ R290 9 kW is a monobloc air source heat pump designed to deliver high energy efficiency and year-round thermal comfort. Thanks to the use of natural refrigerant R290 and Mitsubishi Electric’s ECODAN technology, this unit is an ideal solution for residential projects seeking sustainability, reliability, and stable performance even in demanding outdoor conditions.

System Type and Application

As a monobloc system, the entire refrigeration circuit is integrated into the outdoor unit, simplifying installation and eliminating the need to handle refrigerant on-site. The connection to the interior is made via a hydraulic circuit, making it easy to integrate with heating, cooling, and domestic hot water production systems.

With a nominal output of 9 kW, this heat pump is suitable for medium-sized single-family homes, with recommended surface areas depending on insulation level, emission system, and actual thermal load calculations.

R290 Refrigerant and Sustainability

R290 (propane) is a natural refrigerant with a very low global warming potential, allowing for high supply temperatures while maintaining excellent efficiency. This makes the unit especially suitable for both underfloor heating and existing radiators, while also contributing to emissions reduction and compliance with current environmental regulations.

Performance and Operation

• Nominal thermal output: 9 kW.
• Operates in heating, cooling, and DHW production modes.
• Inverter compressor for precise and efficient modulation.
• High seasonal performance optimized for European climates.
• Stable operation at low outdoor temperatures.

Hydraulic Connections

• Supply and return connections via standard hydraulic threads.
• Prepared to work with buffer tanks and DHW accumulators.
• Compatible with low and medium temperature systems.
• Easy integration with ECODAN controls and hydraulic modules.

Dimensions and Weight

• Outdoor unit dimensions (H × W × D): approximately 1,100 × 1,050 × 480 mm.
• Weight: around 135 kg.

Key Features

• Compact monobloc air source heat pump.
• High-efficiency, low environmental impact natural R290 refrigerant.
• High supply temperature to suit existing emitters.
• Robust design for permanent outdoor installation.
• Reliability and durability of the Mitsubishi ECODAN range.

Installation Notes

• Installation recommended by a professional specialized in aerothermal systems.
• Frost protection in the hydraulic circuit is essential.
• The indicated output is nominal and should be confirmed by thermal load calculation.
• Check compatibility with the selected control system, accumulators, and emitters.

The Mitsubishi Electric ECODAN PUZ-WZ R290 9 kW is a modern and sustainable air source heat pump solution, designed for those seeking efficiency, environmental responsibility, and a reliable system capable of meeting all the thermal needs of the home with a single unit.
